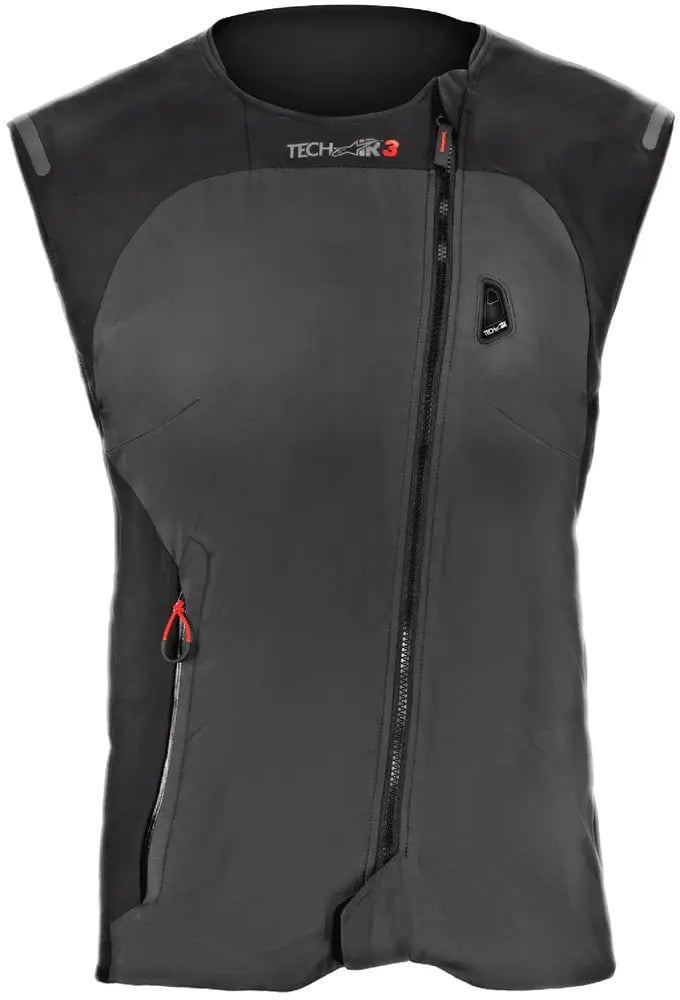

Alpinestars Stella Tech-Air 3 System 10A
Product description
Experience unparalleled protection for motorcyclists with the Alpinestars Stella Tech-Air® 3 System, Alpinestars’ lightest autonomous airbag system. This innovative vest is designed to be worn both over and under your motorcycle jacket, making it the ideal choice for touring riders, urban commuters, and adventurous off-road riders. Thanks to the ergonomically optimized fit specifically for women, the Stella Tech-Air® 3 offers a tailored and tapered cut for maximum comfort during long rides.
The Stella Tech-Air® 3 system utilizes an advanced crash detection algorithm developed and refined with millions of kilometers of riding data and thousands of crash tests. This enables the system to accurately assess when the airbag should be activated in the event of a collision or other dangerous situations, such as a lowside or highside crash. In the event of a crash, the system detects the onset of impact and inflates the airbag within just 50 milliseconds, ensuring the rider is optimally protected before the motorcycle actually makes contact.
The Stella Tech-Air® 3 has been tested according to the Dolomiticert Protocol and performs excellently within a speed range of 25 to 63 km/h. The water-resistant outer shell and the waterproof ECU and electronics make the system suitable for various weather conditions. Thanks to its slim, self-contained design, the vest can easily be worn under any motorcycle jacket, including the Alpinestars Tech-Air® Ready jacket, or under any leather or textile jacket, provided there is sufficient space for the airbag to inflate.
The vest is fully autonomous and does not require any external connections or sensors on the motorcycle. With six integrated sensors, including triaxial accelerometers and gyroscopes, the Stella Tech-Air® 3 provides excellent crash monitoring in a variety of dynamic riding conditions, even when stationary. The automatic activation via the magnetic zipper closure ensures seamless and reliable operation of the system.
The Stella Tech-Air® 3 system is not only functional but also practical in use. The packable design makes it easy to store the vest in a backpack or under the seat of your motorcycle when not in use. A diagonal zipper provides full front chest coverage and conceals the internal airbag, while the magnetic closure ensures a secure and easy seal. An LED display on the chest shows the operational status of the airbag and warns you when the battery is low.
With Bluetooth Low Energy (BLE 5.0) connectivity, the Stella Tech-Air® 3 system can be paired with the Tech-Air® App, allowing riders to monitor the status of the system and the battery, as well as access a detailed map of their rides via MyRide. The system's software is easily upgradable through the app, ensuring you always have the latest features and improvements. The integrated, certified lithium-ion battery provides a usage time of 40 hours and can be recharged in approximately 4 hours.
Safety is paramount with the Stella Tech-Air® 3 system, which complies with European CE standards and the EN1621-4:2013 airbag certification standard. The vest provides full chest and back protection and guarantees impact protection for at least five seconds after activation. Additionally, the vest is water-resistant and easy to maintain, making it a reliable and durable choice for any motorcyclist. Enjoy your daily rides with peace of mind, knowing you are optimally protected with the Alpinestars Stella Tech-Air® 3 System.
Product video
Product info
| Brand |  |
|---|---|
| Model | Stella Tech-Air 3 System |
| Color | 10A |
| Product Type | Clothing |
| Category | Airbags |
| Sexe | Women |
- Advanced Electronic System: The state-of-the-art, wearable Tech-Air® 5 vest is equipped with an active electronic system that includes six integrated sensors (3 gyroscopes and 3 accelerometers) and a crash algorithm that leverages AI to accurately monitor when to deploy the airbag in the event of a crash. Developed from years of research with over 50% of the world’s top MotoGP riders and Alpinestars customers, riding data from millions of kilometers and thousands of crashes have been analyzed to continuously improve the intelligent crash detection algorithm.
- Fast Airbag Activation: Upon identifying a crash situation, a protective airbag is deployed, providing unrivaled protection to the rider with a maximum inflation time of 20 to 40 ms, depending on the size of the airbag. The impact absorption while wearing the airbag results in a reduction of impact force by up to 95% compared to a passive protector. The Tech-Air® 5 Airbag System offers the same protection as that provided by 18 CE Level 1 back protectors.
- Ease of Use: The system is extremely easy to use: simply zip up the vest and close the magnetic flap, and you’re ready to ride. An LED display indicates the airbag’s operational status, and the integrated, certified lithium-ion battery has a battery life of 30 hours of riding time. The system is equipped with a magnetic micro USB charger that allows for quick, easy, and convenient charging.
- Bluetooth Connectivity: Tech-Air® 5 features Bluetooth connectivity and an accompanying Tech-Air® App, which uses the rider’s phone to display the system’s operational status, battery status, and a detailed analysis of a ride. The system’s firmware can also be updated directly via the app.
- Innovation and Experience: Alpinestars began nearly 20 years ago with the development of the original Tech-Air® System. Upon its launch in 2014, the Tech-Air® system was recognized as the world’s first airbag providing full upper body protection with a completely independent electronic management system, in addition to the versatility of the vest, which could be easily zipped into a variety of Tech-Air® compatible jackets. In December 2019, Tech-Air® 5 was already recognized by CES as one of the most innovative products in the wearables technology market.
- FIM Grand Prix Compatibility: The Tech-Air® 7x System meets all FIM Grand Prix requirements for Airbag Systems, making it suitable for road racing competitions.
- Advanced Technology: Features the latest evolution of Alpinestars Tech-Air® technology, including a more compact and complete active electronic system with 12 sensors.
- Sensors: Includes 4 tri-axial sensors (1 tri-axial accelerometer and 1 tri-axial gyroscope located on the main electronic control unit) and 2 additional tri-axial accelerometers on the shoulders, specifically developed for track and performance riding.
- Crash Detection: Combines with the Tech-Air® algorithm to accurately monitor when to deploy the airbag in the event of a crash. The airbag deploys within a maximum of 44 ms, depending on the airbag size.
- Certifications:
- Category II PPE: Certified under European Regulation (EU) 2016/425.
- Dolomiticert Guidelines:
- Airbag System Central Back Inflatable Protector, Level 2, EN 1621-4:2018
- Protective Garment, Class C, EN 17092-6:2020
- Integrated Passive Central Back, Level 1, EN 1621-2:2014
- Additional Protection: The integrated back protector is extended to protect the coccyx.
- LED Display: Strategically placed on the Front Flap, displaying the system’s operational status, battery status, and the number of available inflators.
- External LED Display: Can be connected to an externally wired LED display, sold as an accessory, for use with a dedicated Alpinestars Tech-Air® 7x System racing suit or Tech-Air® Compatible jacket.
- Charging Port: The Front Flap includes an integrated USB-C charging port for easy and convenient charging. Simply plug the USB-C cable into the Front Flap and connect it to a power source. The charging port remains accessible even when the system is integrated within an Alpinestars leather suit or jacket.
- Robust ECU: The ECU of the Tech-Air® 7x is housed within a robust shell and is seal-protected within the vest to ensure all-weather performance. The vest and components are certified to operate between -10°C and 50°C.
- Ventilation: The vest features extensive perforations for superior airflow, while the ribbed finish and internal air channels enhance breathability and ensure powerful air circulation for ultimate comfort.
- Stretch Panels: Strategically placed stretch panels on the sides provide an optimized performance fit.
- Automatic Deflation: Once deployed, the Airbag automatically deflates through a deflation valve.
- Removable Components: The gas inflator housing, electronic wiring, and Airbag are easily removable.
- Bluetooth Connectivity: With the Tech-Air® App, riders can view the operational status of the system, battery status, and MyRide trip information easily on a mobile device, depending on network coverage.
- Firmware Updates: Riders can easily update the system’s firmware when new crash-detection algorithms become available via the Tech-Air® App.
