Product description

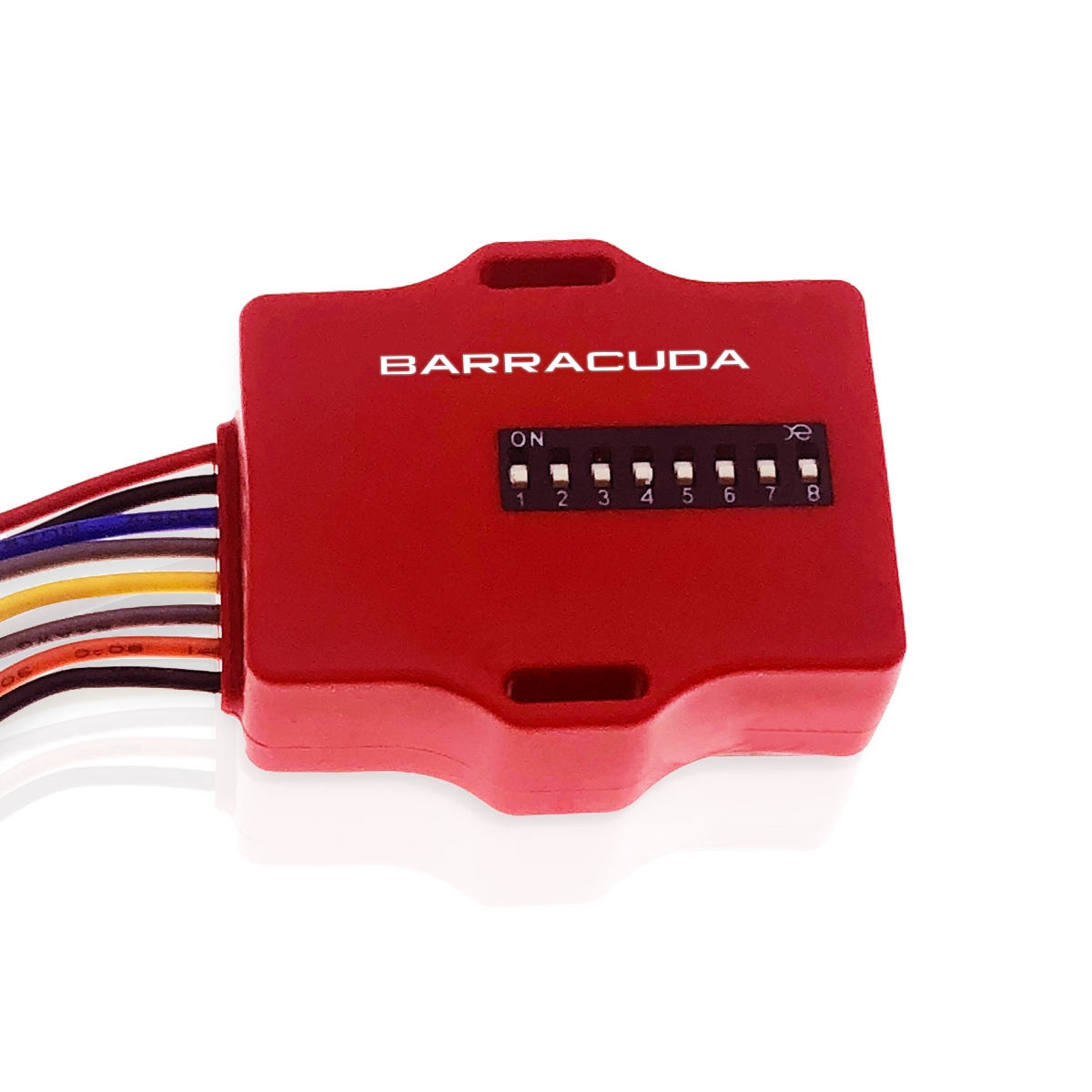

The CAN-BUS RELAY BARRACUDA is an electronic component essential for the correct operation and flashing of the direction indicators for most vehicles equipped with the CAN-BUS system.
_x000D_
The CAN-BUS RELAY supplies an electrical load necessary for the correct operation and flashing of the BARRACUDA LED INDICATORS by means of the combination of the appropriate switches.
_x000D_
Up to 2 channels can be operated, for example: direction indicators in the Rear Left and direction indicators in the Rear Right.
_x000D_
The CAN-BUS RELAY BARRACUDA can also be used on vehicles equipped with original LED direction indicators.
_x000D_
The following resistance values can be set: 150 ohm 170 ohm 200 ohm240 ohm300 ohm400 ohm600 ohm 1200 ohm Cable length = 200mm with 3mm Faston Connections: Yellow = channel 1 input (+) Orange = output channel 1 (+) Blue = input channel 2 (+) red = output channel 2 (+) gray = input ground (-) black = output surface (-)
_x000D_
Connectivity: 1 CAN-BUS REALIS for 1 PAIR OF INDICATORS.
Product info
| Brand | Barracuda |
|---|---|
| Model | Can-Bus Relay N1003-CR |
| Product Type | Parts |
