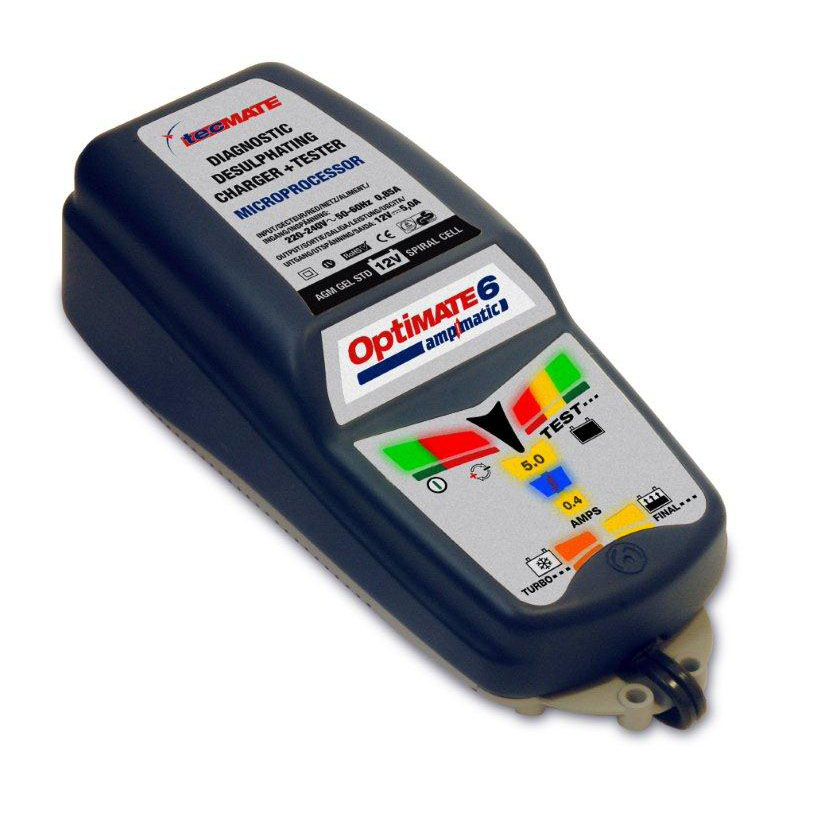

Tecmate Optimate 6 Acculader

Optimate battery chargers have been developed by Tecmate since 1994, providing various maintenance and testing equipment for workshops. The smart chargers are of high quality and fully developed. Optimate chargers are recommended by many motorcycle manufacturers.

Differences between chargers

There are different Optimate chargers available. The biggest difference lies in the charging power. Additionally, the more expensive models have a more extensive test and charge cycle. For motorcycles with a CanBus connection, the Optimate 4 Dual has been specially developed. It has two different charging programs, both for CanBus and normal. To use the charger on a CanBus connection, a separate cigarette lighter plug is needed. This is available separately.

Advantages of Optimate chargers:

• Up to 400% longer battery lifespan
• Both test and maintenance cycle
• Special function for weak batteries
• LED indication for information and test results
• Built-in safety system for safe charging
• Automatic switch from charging to trickle charging
• Weather-resistant housing
• Standard equipped with SAE connection (adapters available separately)

Operation of test and charge cycle

After connecting, the Optimate tests the battery voltage and checks if it can be charged according to a normal charging cycle. For very deeply or fully discharged batteries, you need an Optimate 3, 4, 5, or 6. If the battery is fully discharged, the charger (except for Optimate 2) estimates whether it can be recovered and starts the recovery program if possible. Depending on the condition of the battery, it is charged with different current strengths until normal charging can begin. When the battery is fully charged, the Optimate tests the battery for current retention and eventually switches to trickle charging. The charger can remain connected to the battery indefinitely, so you don't have to worry about it.

The specific properties per charger can be found in the product specifications below. Various accessories, cables, and adapters are available separately.

Optimate battery charger selection guide, if you have any additional questions, please contact us:

The Optimate 2 contains a 4-step charging program:

1. Starts the charging process under low voltage (2V)
2. Controlled charging
3. Optimizing the battery
4. Maintenance charging

The Optimate 3 contains a 9-step charging program:

1. Starts the charging process under low voltage (0.5V)
2. Battery test before charging starts
3. Pulse 'Wake up'
4. Turbo save
5. Pulse save
6. Controlled charging
7. Optimizing the battery
8. Battery test after charging
9. Maintenance charging

The Optimate 4 contains a 9-step charging program:

1. Starts the charging process under low voltage (0.5V)
2. Test before charge
3. Pulse 'wake up'
4. Turbo save
5. Pulse save
6. Controlled charging
7. Optimizing the battery
8. Battery test after charging
9. Maintenance charging

The Optimate Lithium 0.8A includes an 8-step charging program:

1. Starts the charging process under low voltage (0.5V)
2. Test before charge
3. Temperature check
4. Ultra low Volt save
5. Test cell damage
6. Optimizing the battery
7. Battery test after charging
8. Maintenance charging

The Optimate 4 CAN-bus edition contains an 8-step charging program:

1. CAN-bus Pulse 'wake up'
2. CAN-bus low volt check
3. Test before charge
4. Pulse save
5. Controlled charging
6. CAN-bus Optimizing the battery
7. CAN-bus Battery test after charging
8. CAN-bus Maintenance charging

The Optimate 5 contains an 8-step charging program:

1. Starts the charging process under low voltage (1V)
2. Test before charge
3. Turbo save
4. Pulse save
5. Controlled charging
6. Optimizing the battery
7. Battery test after charging
8. Maintenance charging

The Optimate 6 contains a 9-step charging program:

1. Starts the charging process under low voltage (0.5V)
2. Test before charge
3. Pulse 'wake up'
4. Turbo save
5. Pulse save
6. Controlled charging
7. Optimizing the battery
8. Battery test after charging
9. Maintenance charging

The Optimate Lithium 5A includes a 10-step charging program:

1. Starts the charging process under low voltage (0.5V)
2. Test before charge
3. Temperature check
4. Ultra low Volt save
5. Low Volt save/ cell monitoring
6. Test cell damage
7. Balanced cell charging
8. Optimizing the battery
9. Battery test after charging
10. Maintenance charging
